Flat hood HTD26411
-
D energy efficiency class
-
60cm width
-
LED
- Energy efficiency class: D
- Connected load: 155 W / 220 – 240 V
- Fan efficiency class 1): E
- Light efficiency class 1): C
- Grease filter efficiency class 1): D
- Extraction capacity max. normal / intensive level1): 273 m³ / h / –
- Circulation capacity max. normal / intensive level 1): 155 m³ / h / –
- Noise level (in dB {A}) normal level max. extract air 2 2): 60
1. Standards for fan capacity according to EN 61591.
2. Standards for sound pressure according to EN 60704-2-13.
- Stainless steel
- Optional extraction or circulation mode
- 2-level fan power
- Uniform, bright lighting with 2 x 2.5 W LED lamps
- Metal grease filter, dishwasher-safe
- including exhaust air shaft
- Activated carbon filter HTZD26AF03
- Appliance dimensions, extraction: 17,5 × 59,8 × 28,0 – 43,0 cm
- Appliance dimensions, circulation: 17,5 × 59,8 × 28,0 – 43,0 cm
Instruction manual
Technical data sheet
-
Technical-data-sheet-HTD26411-DE.pdf (109.29 KiB)
-
Technical-data-sheet-HTD26411-EN.pdf (107.50 KiB)
-
Technical-data-sheet-HTD26411-ES.pdf (107.46 KiB)
-
Technical-data-sheet-HTD26411-FR.pdf (107.96 KiB)
-
Technical-data-sheet-HTD26411-IT.pdf (107.13 KiB)
-
Technical-data-sheet-HTD26411-NL.pdf (108.35 KiB)
-

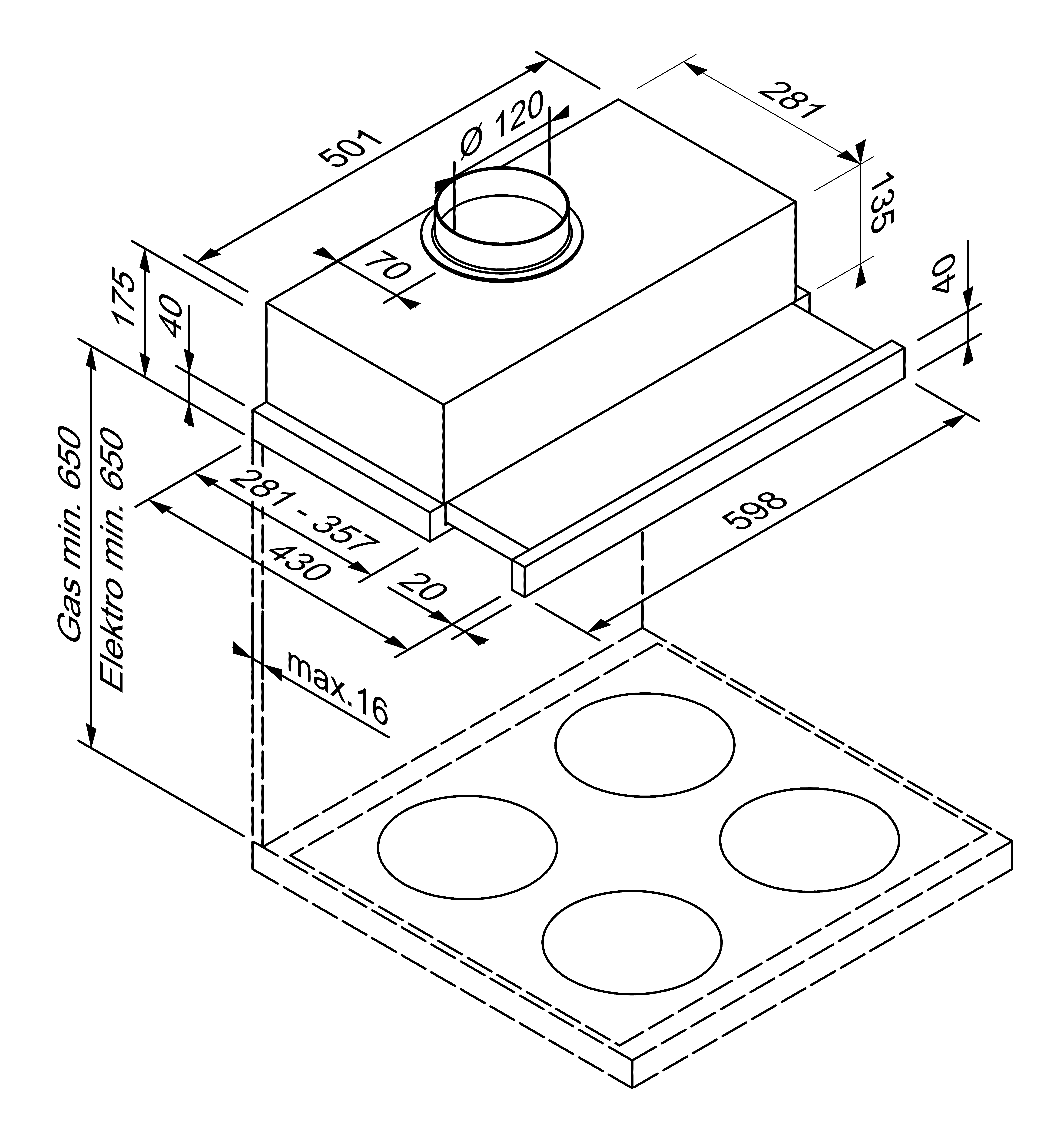

Technical-drawing-HTD26411.png Energy label
EAN: 4251003103465
