Wall flue HTD46311
-
D energy efficiency class
-
60cm width
-
LED
- Voltage: 220-240V
- Total connected load: 152.5 W
- Energy efficiency class 1): D
- Fan efficiency class 1): E
- Light efficiency class 1): C
- Grease filter efficiency class 1): D
- Noise level (in dB {A})
normal level max. extract air 2) 60 dB(A) - Circulation capacity
max. normal / intensive level 1): 379 m³ / h / –
1. Standards for fan capacity according to EN 61591.
2. Standards for sound pressure according to EN 60704-2-13.
- Stainless steel
- For wall installation above cooking zones
- Optional extraction or circulation mode
- 3-level fan power controllable via push buttons
- Uniform, bright lighting with 1 × 2.5 W LED lamps
- Metal grease filter, dishwasher-safe
- including exhaust air shaft
- Activated carbon filter HTZD46AF55
- Appliance dimensions, extraction: 58.3 – 89.8 × 60.0 × 45.0 cm
- Appliance dimensions, circulation: 66.8 – 89.8 × 60.0 × 45.0 cm
Instruction manual
Technical data sheet
-
Technical-data-sheet-HTD46311-DE.pdf (98.64 KiB)
-
Technical-data-sheet-HTD46311-EN.pdf (97.22 KiB)
-
Technical-data-sheet-HTD46311-ES.pdf (97.10 KiB)
-
Technical-data-sheet-HTD46311-FR.pdf (97.51 KiB)
-
Technical-data-sheet-HTD46311-IT.pdf (96.65 KiB)
-
Technical-data-sheet-HTD46311-NL.pdf (97.83 KiB)
-

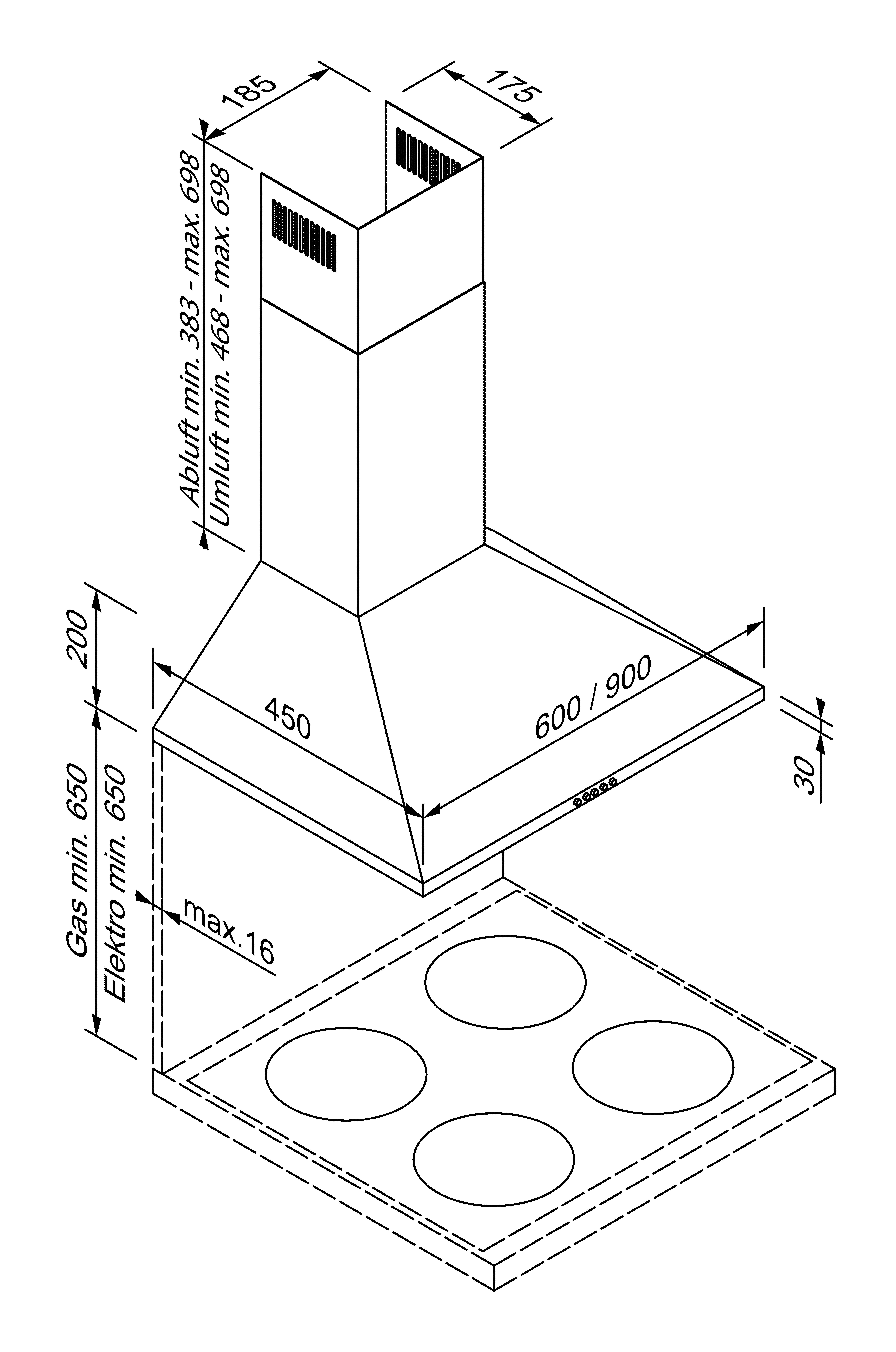

Technical-drawing-HTD46311_HTD49311.png Energy label
EAN: 4251003103472
