Wall flue HTD49311
-
D energy efficiency class
-
90cm width
-
LED
- Energy efficiency class: D
- Connected load: 152,5 W / 220 – 240 V
- Fan efficiency class 1): E
- Light efficiency class 1): C
- Grease filter efficiency class 1): D
- Extraction capacity max. normal / intensive level1): 379 m³ / h / –
- Circulation capacity max. normal / intensive level 1): 250 m³ / h / –
- Noise level (in dB {A}) normal level max. extract air 2 2): 60
1. Standards for fan capacity according to EN 61591.
2. Standards for sound pressure according to EN 60704-2-13.
- Stainless steel
- For wall installation above cooking zones
- Optional extraction or circulation mode
- 3-level fan power controllable via push buttons
- Uniform, bright lighting with 1 × 2.5 W LED lamps
- Metal grease filter, dishwasher-safe
- including exhaust air shaft
- Activated carbon filter HTZD46AF55
- Appliance dimensions, extraction: 58,3 – 89,8 × 60,0 × 45,0 cm
- Appliance dimensions, circulation: 66,8 – 89,8 × 60,0 × 45,0 cm
Instruction manual
Technical data sheet
-
Technical-data-sheet-HTD49311-DE.pdf (101.00 KiB)
-
Technical-data-sheet-HTD49311-EN.pdf (99.58 KiB)
-
Technical-data-sheet-HTD49311-ES.pdf (99.45 KiB)
-
Technical-data-sheet-HTD49311-FR.pdf (99.88 KiB)
-
Technical-data-sheet-HTD49311-IT.pdf (99.01 KiB)
-
Technical-data-sheet-HTD49311-NL.pdf (100.19 KiB)
-

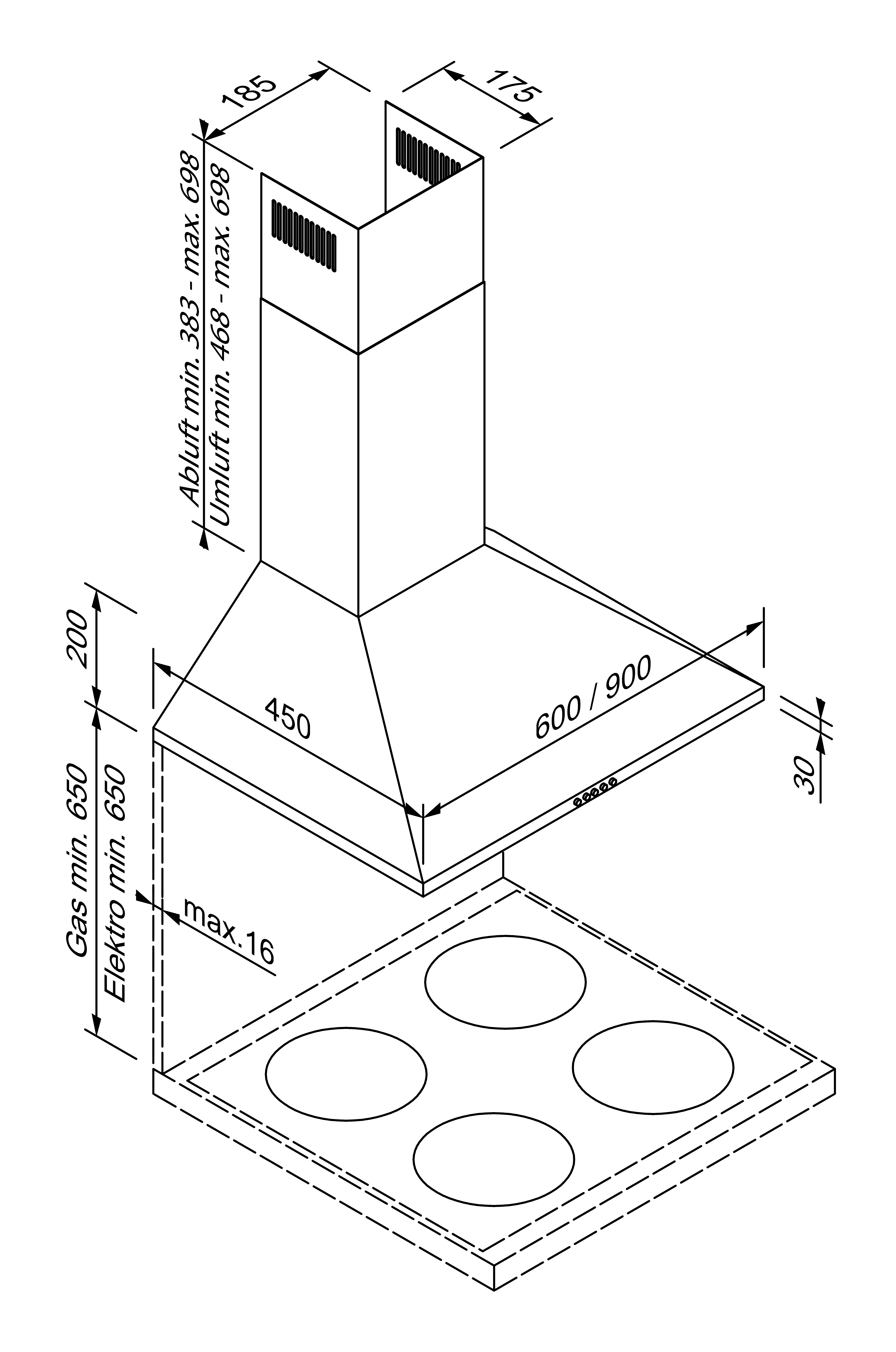

Technical-drawing-HTD46311_HTD49311.png Energy label
EAN: 4251003103472
