Wall flue HTD56320
-
D energy efficiency class
-
60cm width
-
LED
- Energy efficiency class: D
- Connected load: 155 W/ 220 – 240 V
- Fan efficiency class 1): E
- Light efficiency class 1): C
- Grease filter efficiency class 1): D
- Extraction capacity max. normal / intensive level1): 379 m³ / h / –
- Circulation capacity max. normal / intensive level 1): 250 m³ / h / –
- Noise level (in dB {A}) normal level max. extract air 2 2): 60
1. Standards for fan capacity according to EN 61591.
2. Standards for sound pressure according to EN 60704-2-13.
- Stainless steel
- For wall installation above cooking zones
- Optional extraction or circulation mode
- 3-level fan power controllable via push buttons
- Uniform, bright lighting with 2 x 2,5 W LED lamps
- Metal grease filter, dishwasher-safe
- including exhaust air shaft
- Appliance dimensions, extraction: 67,0 – 110,0 × 60,0 × 48,0 cm
- Appliance dimensions, circulation: 77,0 – 110,0 × 60,0 × 48,0 cm
Instruction manual
Instruction manual
Technical data sheet
-
Technical-data-sheet-HTD56320-DE.pdf (98.76 KiB)
-
Technical-data-sheet-HTD56320-EN.pdf (97.38 KiB)
-
Technical-data-sheet-HTD56320-ES.pdf (97.19 KiB)
-
Technical-data-sheet-HTD56320-FR.pdf (97.64 KiB)
-
Technical-data-sheet-HTD56320-IT.pdf (96.81 KiB)
-
Technical-data-sheet-HTD56320-NL.pdf (97.94 KiB)
-

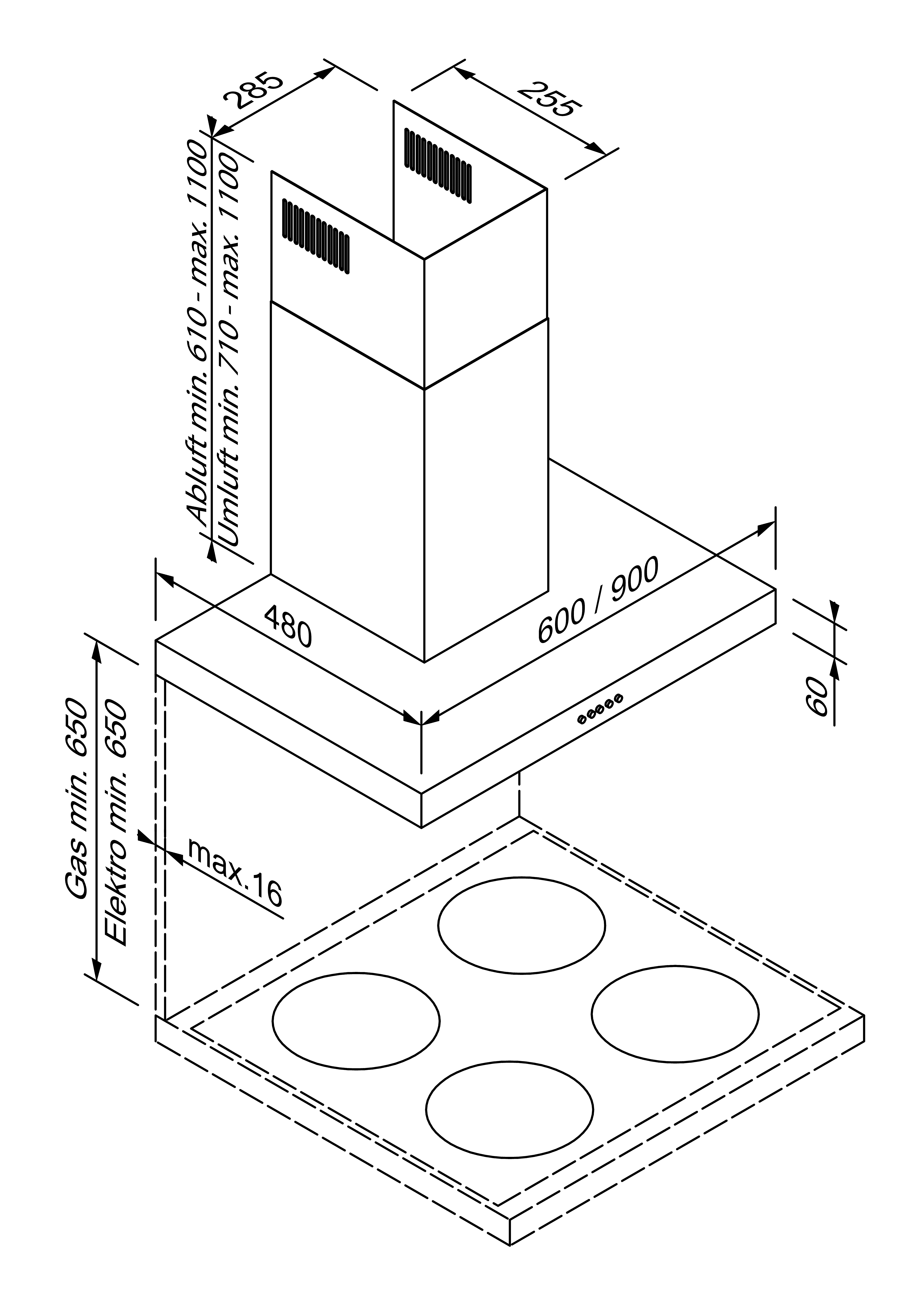

Technical-drawing-HTD56311_HTD59311_HTD56320_HTD59320.png Energy label
