Wall flue HTD57313
-
D energy efficiency class
-
60cm width
-
LED
- Energy efficiency class: D
- Connected load: 155 W/ 220 – 240 V
- Fan efficiency class 1): E
- Light efficiency class 1): A
- Grease filter efficiency class 1): G
- Extraction capacity max. normal / intensive level1): 350 m³ / h / –
- Circulation capacity max. normal / intensive level 1): 250 m³ / h / –
- Noise level (in dB {A}) normal level max. extract air 2 2): 68
1. Standards for fan capacity according to EN 61591.
2. Standards for sound pressure according to EN 60704-2-13.
- Stainless steel
- For wall installation above cooking zones
- Optional extraction or circulation mode
- 3-level fan power controllable via push buttons
- Uniform, bright lighting with 2 x 1 W LED lamps
- Metal grease filter, dishwasher-safe
- including exhaust air shaft
- Appliance dimensions, extraction: 76,8 – 101,0 × 59,8 × 37,0 cm
- Appliance dimensions, circulation: 76,8 – 101,0 × 59,8 × 37,0 cm
Instruction manual
Instruction manual
Technical data sheet
-
Technical-data-sheet-HTD57313-DE.pdf (104.58 KiB)
-
Technical-data-sheet-HTD57313-EN.pdf (103.05 KiB)
-
Technical-data-sheet-HTD57313-ES.pdf (102.99 KiB)
-
Technical-data-sheet-HTD57313-FR.pdf (103.34 KiB)
-
Technical-data-sheet-HTD57313-IT.pdf (102.60 KiB)
-
Technical-data-sheet-HTD57313-NL.pdf (103.66 KiB)
-

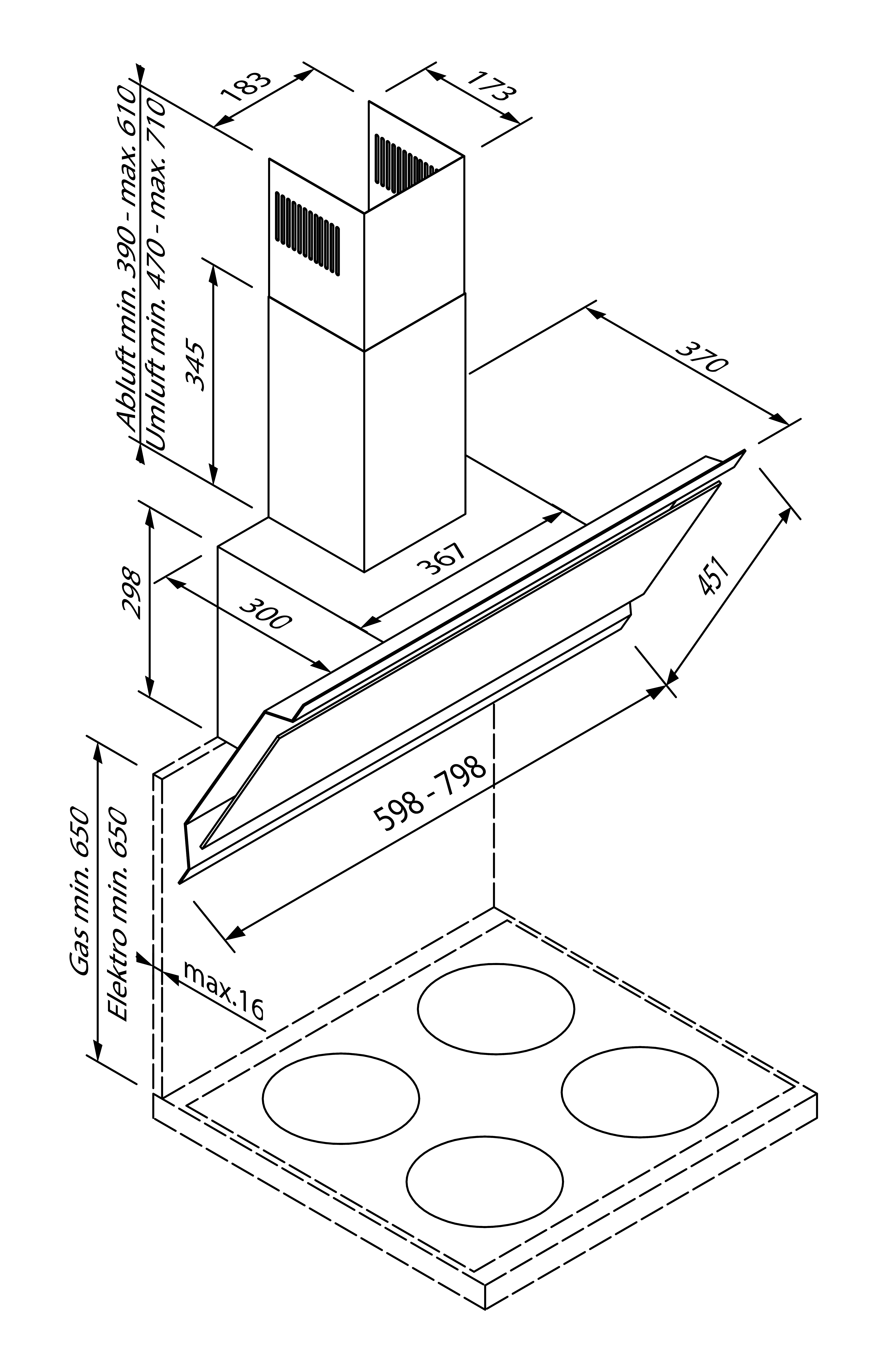

Technical-drawing-HTD57312_HTD57313.png Energy label
