Induction hob with integrated extractor fan, stand-alone HTX94900
-
A+ energy efficiency class
-
80cm width
-
Induction
-
Touch Control
-
Boost function
-
Residual heat display
-
Digital display
Hob
- Voltage: 220–240 V
- Total connected load: 7.2 kW
- 4 induction cooking zones with booster:
- 2 cooking zones Ø 16.0 cm (1.2 kW / 1.4 kW)
- 2 cooking zones Ø 21.0 cm (2.3 kW / 3.0 kW)
Extractor fan
- Voltage: 220–240 V
- Total connected load: 165 W
- Energy efficiency class: A+
- Average power consumption: 42.0 kWh/year
- Fan efficiency class: A
- Grease filter efficiency class: B
- Noise level (in dB {A}) normal level max. extract air²
- max. 63 dB(A)
- Fan output max. normal level / intensive level*:
- in extraction mode 475 m3/h / 570 m3/h
- in circulation mode 395 m3/h / 455 m3/h
- Filter saturation indicator
Hob
- Touch control
- Digital display in red
- Pot detection
- Residual heat display
- Timer
- Safety switch-off
- Power management
Extractor fan
- Glass ceramic, black
- Suitable for installation in a kitchenette or kitchen island
- Optional extraction or circulation mode (carbon filter required for circulation mode)
- 10-level fan power controllable via touch control
- 9 power levels + 1 intensive level
- Intensive level with automatic reset for extraction mode
- Automatic, three-level blower overrun of 5/10 and 20 minutes with LED display
- Metal grease filter and carbon filter saturation indication by LED control lamp
- To clean/evacuate the metal grease filter and the water collection tank, the appliance automatically blocks after 40 hours of operation
- Automatic overrun for circulation mode
- Water collection tank: 0.25 litre capacity
- Powerful and quiet blower
- Metal grease filter, dishwasher-safe
Extractor fan
- Metal filter, dishwasher-safe
- HTZD94AF01: Twin filter
- Appliance dimensions: (H/W/D) 21.0 × 80.0 × 52.0 cm
- Installation dimensions: (H/W/D) 21.0 × 75.0 × 49.0 cm
Planning advice:
- It is not possible to plan in dishwashers, underframe coolers, base drawers etc. in the area of the exhaust air duct
- Min. cabinet width 800 mm
- Min. worktop depth 600 mm (correspondingly deeper when planning in niche panelling)
- Base height min. 100 mm (depending on the duct system used)
Instruction manual
Technical data sheet
-
Technical-data-sheet-HTX94900-DE.pdf (125.45 KiB)
-
Technical-data-sheet-HTX94900-EN.pdf (125.04 KiB)
-
Technical-data-sheet-HTX94900-ES.pdf (125.19 KiB)
-
Technical-data-sheet-HTX94900-FR.pdf (125.15 KiB)
-
Technical-data-sheet-HTX94900-IT.pdf (124.36 KiB)
-
Technical-data-sheet-HTX94900-NL.pdf (125.64 KiB)
-

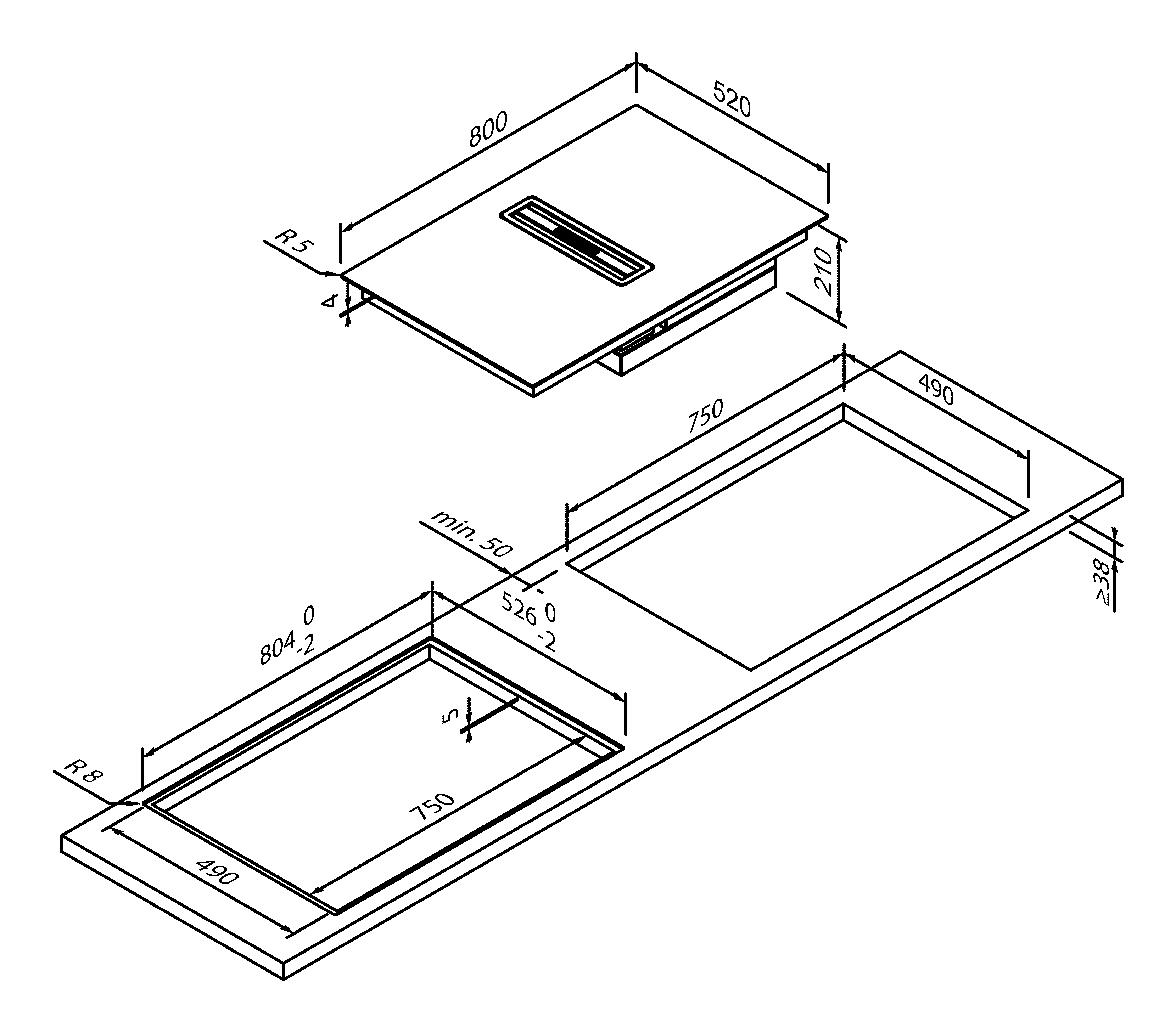

Technical-drawing-HTX94900.png Energy label
EAN: 4251003109894
